NXT LITE
M3-2 & M3-3 STB RECEIVER
NXT LITE M3-2 & M3-3 STB RECEIVER
NXT Lite is a high-performance set-top box solution that is ideal for digital signage and smaller cost-effective environment such as hotels, hospitals, restaurants/bars, foyers, offices and waiting rooms. It delivers delivers up to 4KP@60 for video using Nextologies' proprietary software.
| CPU | Model: NXT Life M2 |
| Number of Cores: Quad-core ARM Cortex-A55 | |
| Frequency: 4 x Cortex-A55 up to 2.0GHz |
| GPU | Mali-G52 1-Core-2EE, supports OpenGL ES 1.1/2.0/3.2, Vulkan 1.0/1.1, OpenCL 2.0 Full Profile |
| VPU | 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder |
| NPU | Support 0.8T |
| Memory | RAM: 2GB/4GB LPDDR4X |
| Storage | MicroSD Slot: MicroSD x1, support UHS-I, for external storage up to 128GB |
| Flash: 8GB/16GB eMMC 5.1 Flash | |
| PCle: M.2 M-Key, PCIe2.0 x1, support NVME, PCIe WiFi etc | |
| Onboard M3 PCB nut for mounting M.2 2280 module |

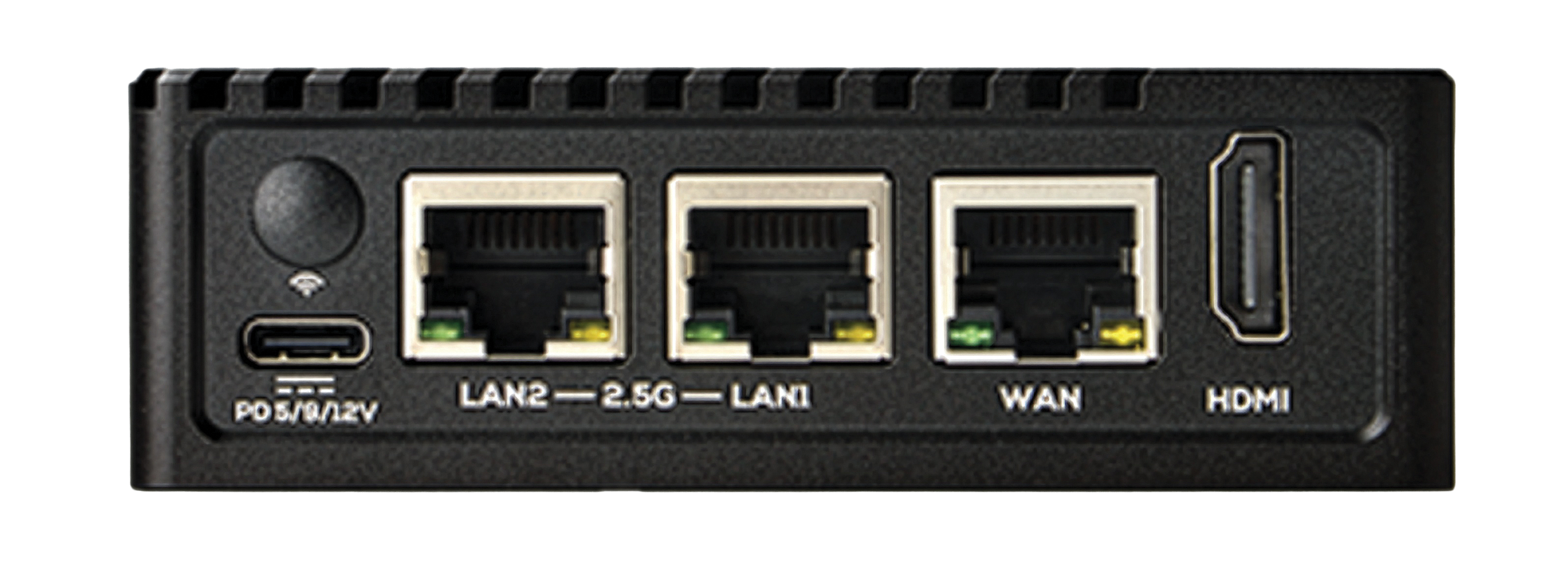

| Connectivity | Ethernet: Native Gigabit Ethernet x1, RTL8211F-CG chip |
| PCIe 2.5G Ethernet Ethernet x2, RTL8125BG chip |
| Video Output | HDMI: support HDMI1.4 and HDMI2.0 operation |
| support up to 10 bits Deep Color modes | |
| support up to 1080p@120Hz and 4096x2304@60Hz | |
| support 3-D video formats |
| USB | USB 3.0 Host x2: USB Type A |
| USB 2.0 Host x1: 2.54mm 4pin-header | |
| Type-C x1: Power Input Only |
| Pin-header | GPIO: 12-pin 0.5mm FPC connector |
| up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs | |
| SD/MMC/SDI0/I2S: 2x8-pin 1.27mm connector | |
| Compatible with SDI03.0 protocol | |
| Compatible with SD3.0, MMC ver4.51 | |
| 4bits data bus widths | |
| 1x I2S with 2x SDO and 3x SDI | |
| Debug: Debug UART x1, 3 Pin 2.54mm header, 3V level, 1500000bps |

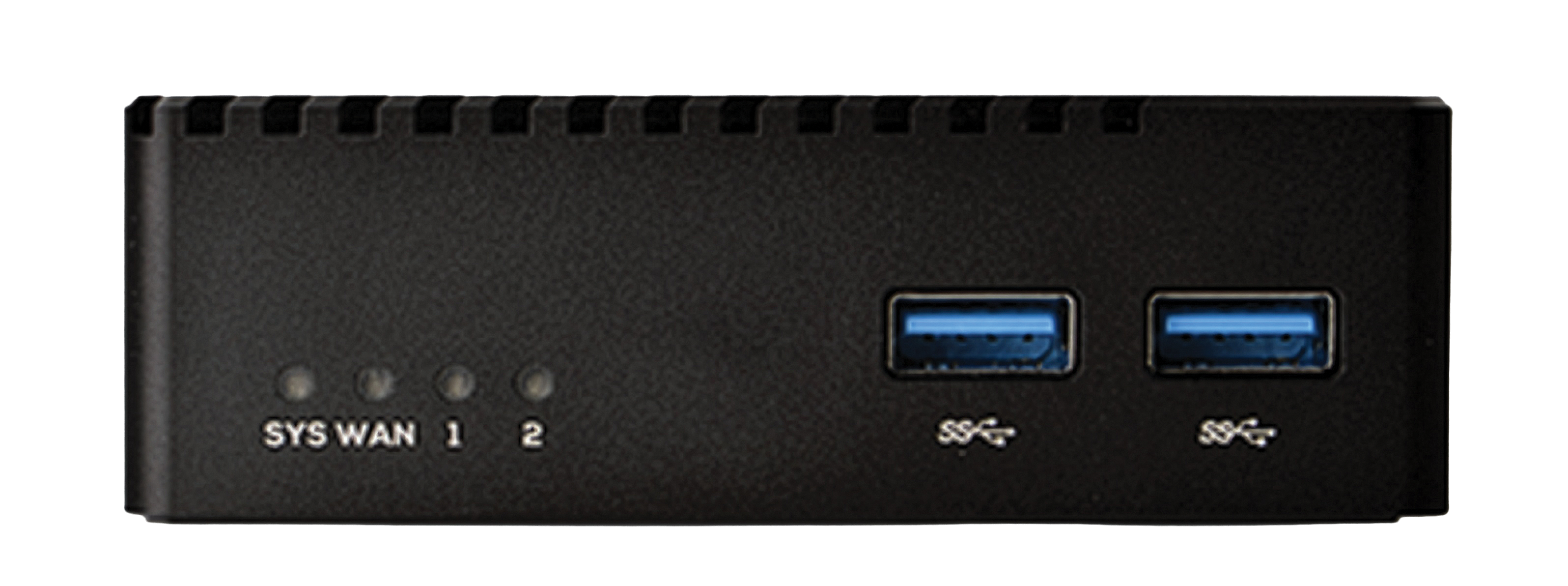

| LED | SYS LED(Red) x1 |
| WAN LED(Green) x1 | |
| LAN1 LED(Green) x1 | |
| LAN2 LED(Green) x1 |
| Button | MASK Button x1 for eMMC update |
| Others | RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS |
| Fan Connector(ZH1.5-2A) x1, 5V | |
| Working Temperature: 0°C to 70°C |
| Power | USB-C, support PD, 5V/9V/12V input |
NXT Lite is a high-performance set-top box solution that is ideal for digital signage and smaller cost-effective environment such as hotels, hospitals, restaurants/bars, foyers, offices and waiting rooms. It delivers delivers up to 4KP@60 for video using Nextologies' proprietary software.
