UPLINK &
TRANSMISSION

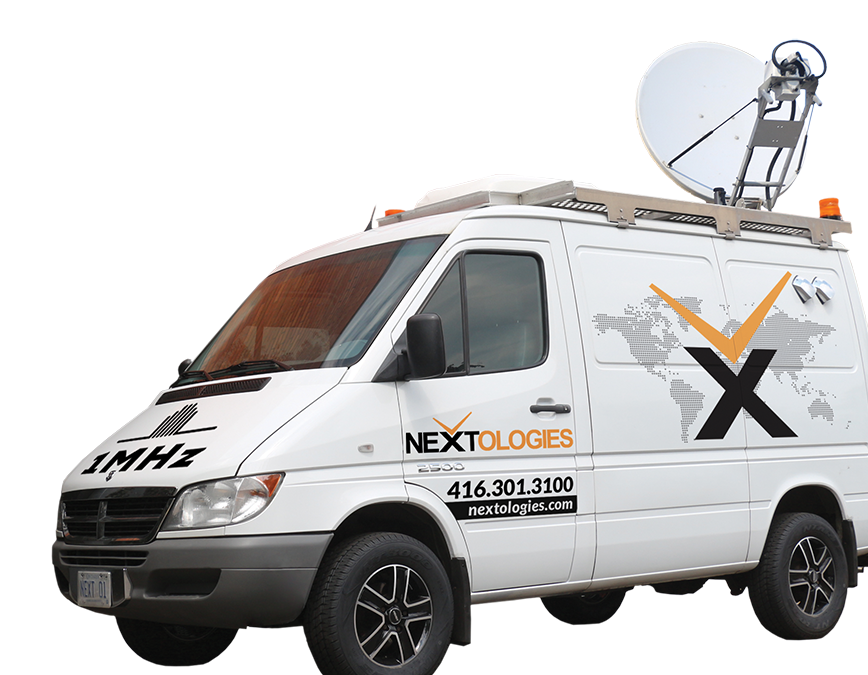

Nextologies' state-of-the-art uplink and transmission services utilizes conventional as well as Nextologies' proprietary 1MHz technology. This allows for optimal satellite capacity, while reducing cost. The technology operates in high modulations using Nextologies' 256 AES encryption with out-of-band keys, allowing for secured delivery.

Our satellite services include IP as well as bonded cellular transmission for redundancy purposes. In addition, it allows for full duplex interconnectivity between the uplink and receiving sites.

FULL EQUIPMENT LIST

CLICK HERE

FULL EQUIPMENT LIST

  • 1 1.2M KU BAND AVL SNG ANTENNA 2 PORT
  • 1 RC3050 3 AXIS ANTENNA CONTROLLER
  • 1 CPI VARIAN TWTA 400 W VZU-6994AC
  • 1 CPI TWTA 400 W VZU 6994AD
  • 1 VARIAN TWTA CONTROLLER WITH A BASEBALL SWITCH
  • 2 COMTEC UPCONVERTERS UT-4515
  • 1 U/CONVERTER SMA SWITCH
  • 1 MODULATOR PATCH PANEL / SWITCH
  • 1 DM240 REDYNE DVBS2/8PSK DVBS/QPSK MODULATOR
  • 1 UC-250IF2 UPCOM DVBS2/8PSK DVBS/QPSK MODULATOR
  • 2 TANDBERG RX1290 IRD's SD/HD
  • 1 UPCOM VC-IRD PLUS SD/HD
  • 1 SD TANDBERG ENCODER / MODULATOR E5500
  • 1 SD TANDBERG ENCODER / MODULATOR E5710
  • 1 CENSUS DIGITAL 16 CHANNEL AUDIO MONITOR
  • 2 VIDEO SDI PATCH PANELS
  • 1 AJA 16X16 CUMO CP SDI/ASI ROUTING SWITCHER
  • 2 ADTEC MEDIA HUB HD422 MPEG II / MPEG4 ENCODERS WITH 8 AUDIOS
  • 1 BLACKMAGIC FRAME STORE / CROSS CONVERTER
  • 1 17 INCH BLACKMAGIC SDI MONITOR
  • 2 DUAL 7 INCH BLACKMAGIC SDI MONITORS
  • 1 3 SCREEN 4 INCH NUMARK VM03 ANALOG MONITORS
  • 1 AVCOM PSA-37D SPECTRUM MONITOR L/C/Ku Bands
  • 1 TEKTRONIX ANALOG BAR GENERATOR
  • 1 BLACKMAGIC CONVERTER ANALOG>SDI
  • 2 TELIT 3G CELL PHONES FOR IFB AND P/L COMMUNICATIONS
  • 1 CLEAR-COM MS-222 TWO CHANNEL BASE STATION
  • 2 CLEAR-COM AC-10A HYBRID ADAPTERS FOR CELL OR TELCO LINES
  • 1 ADH-2 COM DEHYDRATOR
  • 1 300 FEET RG6 SDI CABLE REEL
  • 1 100 FEET RG6 SDI CABLE REEL
  • 1 250 FEET XLR REEL
  • 1 100 FEET RG6 CABLE SPOOL
  • 2 100 FEET XLR EXTENTIONS
  • 1 BOX WITH BNC, XLR, SDI, AC CABLES
  • 1 ONAN DIESEL GENERATOR INVERTER 8Kw 120 VAC
  • 1 AC OUTSIDE SOURCE SWITCH
  • 1 ROOF TOP AC UNIT
  • 3 75 FEED AC 50 AMP SHORE POWER CABLES 120V
  • 1 COM LOCK INTERFACE BOX TO OUTSIDE SOURCE
  • 1 STOVE PLUG ADAPTER FRO SHORE POWER
  • 1 HUBELL 50 AMP CALIFORNIA STYLE AC/50 AMP ADAPTER FOR SHORE POWER
  • 4 LEVELING JACKS
