NXT-2
SDI Encoder/Decoder
NXT-2SDI Encoder/Decoder

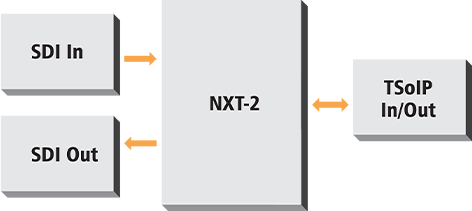

NXT-2 is our latest professional broadcast-grade compliant HD/SD video and audio encoder and decoder device. This unit has the latest Nextologies Q frame technology that supports reliable and error-correcting communications over public internet or private fibre lines. It functions as a Encoder/Decoder for Uni/Bi-directional low latency applications. This appliance can be used in a variety of digital video/audio contribution and distribution systems such as CATV headends, Satellite and Terrestrial TV production.

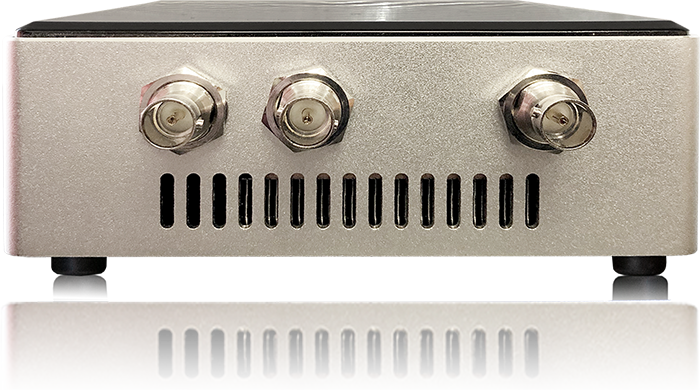

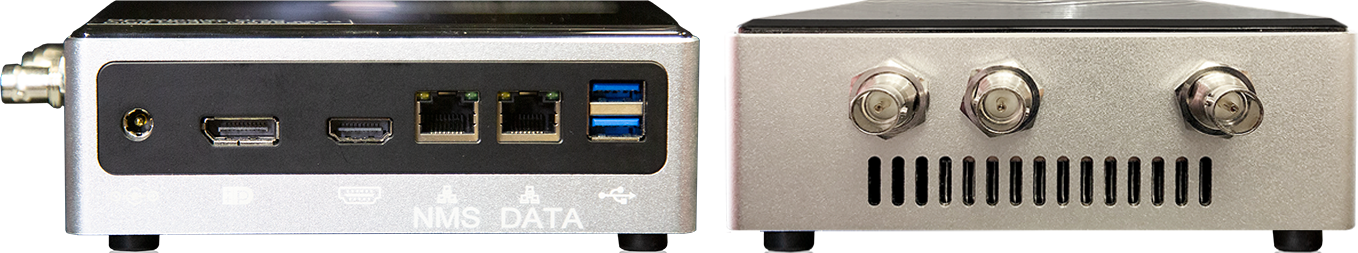

| Number of Inputs/Outputs | BNC | 1 x HD/SD-SDI Input, 1x HD/SD-SDI Output |
| IP | 1 x GbE Data Port, 1 x GbE NMS | |
| Video Standards | 1080i@25/29.97/30fps; 720p@50/59.94/60 fps; 576i@25fps; 480i@29.97 fps | |
| Audio | SDI Embedded up to 16 channels | |
| Data | SCTE 104 and SCTE35 supported; Closed Caption/Teletext |
| Video Decoding | MPEG-2, MPEG-4 & HEVC | |||
| Audio Decoding | MPEG1 Layer 2, AC3, HE-AAC (v2), LC-AAC & OPUS | |||
| NMS Port | Ethernet Port | 10/100/1000M | ||
| Ethernet Port | NMS: TCP/IP, TS over IP: UDP | |||
| System | Interface | Network (NMS), Web Management | ||
| Miscellaneous | Dimension | 137mm x 150mm x 48mm ( L×W×H) *without connectors and without rubber feet | ||
| Approx weight | 750g | |||
| Power | 12V/5A (60W) AC Adaptors | |||
| Temperature | 0~45° C (operational), -20~80° C (Storage) | |||
NXT-2 is our latest professional broadcast-grade compliant HD/SD video and audio encoder and decoder device. This unit has the latest Nextologies Q frame technology that supports reliable and error-correcting communications over public internet or private fibre lines. It functions as a Encoder/Decoder for Uni/Bi-directional low latency applications. This appliance can be used in a variety of digital video/audio contribution and distribution systems such as CATV headends, Satellite and Terrestrial TV production.
